Tas nrho xim xim zaj sawv 8 x 8 Matrix Driver Shield Colorduino V2.0 DM163 RGB LED tsav Board Module 5V rau uno r3
Yam Taw Qhia:
Cov tsav tsheb tsav raws li 3 MBI5168 qhov chaw tsav tsheb tam sim no thiab ib tus neeg tsav tsheb M54564 darlington, Colordino ua haujlwm rau M54564 nrog ib tus neeg tsav tsheb DM163 tam sim no. Yuav kom tsav tsheb RGB matrix thiab ncav cuag lawv qhov kev ua tau zoo tshaj plaws, peb siv cov neeg tsav tsheb tsav DM163 ntawm pawg tswj hwm, los ntawm kev siv DM163, Colordino tau txais peb 8 + 6-ntsis ntawm kev kho vajtse PWM tswj ntawm LED freeing up lub ATMega328P los ntawm coj mus siv nws nyob rau hauv software. Thiab cov DM163 muaj cov npe sau ua haujlwm, cov ntaub ntawv latches, 8 × 3 channel qhov tam sim no thiab 64 x 256 grey qib PWM rau ib xim! Txhua cov channel muab siab tshaj 60 mA.
Yog li, txhua RGB dot muaj 256 × 256 x 256 = 16,777,216 xim (16 plhom) hauv kev tshawb xav, thiab nws yooj yim mus siv lub 6bit kho npe kom txheeb tau qhov yuam kev tam sim no rau txhua qhov xim LEDs
Cov ntaub thaiv npog no yuav tsum tau programmed ntawm FT232 USB adapter
Lub hwj chim yog nkag los ntawm tus pin headers los ntawm 2 pawg ntawm cov ntsia hlau qis, tus swb hloov xaiv ntawm ob. Nrog rau sab nraud, koj tsuas siv tau 5V zog mov, thiab nyob rau sab nraud, tam sim no txhawb 6.2-7.5V zog mov, ntau dua 7V yuav ua rau kub DM163 thiab ntau tshaj 9V khoom tuaj yeem hlawv koj lub rooj tsavxwm. Pins coj tawm ntawm ntug ntawm lub rooj tsavxwm muaj xws li RX, TX thiab DTS, uas yuav siv tau los ua haujlwm rau kev tuav ATmega nti, thiab SCA thiab SCL rau I2C kev sib txuas lus. Ib lub teeb ntsuab ntawm sab xub ntiag ntawm lub rooj tsavxwm pom tias muaj hwj chim, tab sis nws yog qhov teeb meem tsis txaus ntseeg sai li sai tau thaum koj ntsaws lub thawv ntawv hauv vaj huam sib luag.
Yog hais tias koj muaj ib qho rau UNO, tab sis cia li xav tsav lub RGB LED Matrix, koj tuaj yeem xav txog qhov xim cov xim no, nws tau tshaj Colordino v2.0.
Kom nws ua haujlwm, koj yuav tsum xav tau qhov RGB LED Matrix.
Pob Muaj xws li:

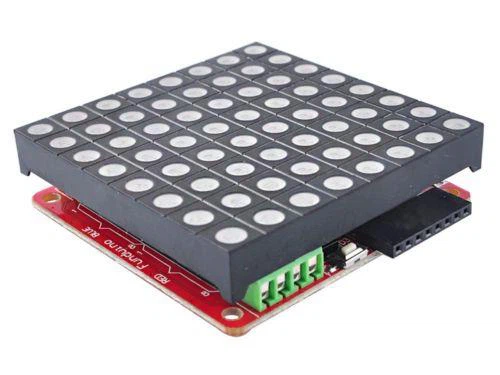

1PCS x Tag nrho cov xim Rainbow Colorduino V2.0 Matrix RGB LED Tsav kev tiv thaiv rau uno DIY
