Ntaus:
Kev siv hluav taws xob: 2.5-6V
Tsis tshua muaj siab txaus lawm
los ntawm I2C lub tsheb npav serial tawm / tso zis
PCF8591 los ntawm 3 qhov chaw kho vajtse pins chaw nyob
Tus nqi ntawm tus nqi PCF8591 I2C tsheb npav txiav txim siab
4 analog inputs programmable li ib-tas lossis sib txawv inputs
Tsis siv neeg incremental channel xaiv
PCF8591 analog voltage ntau ntawm VSS mus VDD
PCF8591 built-in khiav thiab tuav Circuit Court
8-ntsis successive A / D converter
los ntawm ib qho analog output DAC nce

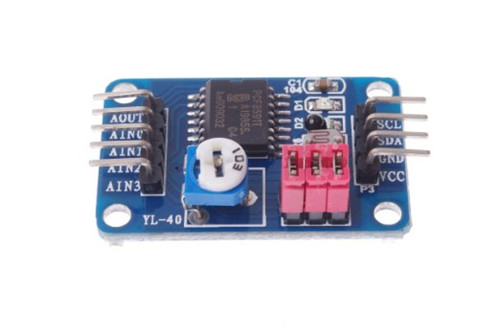

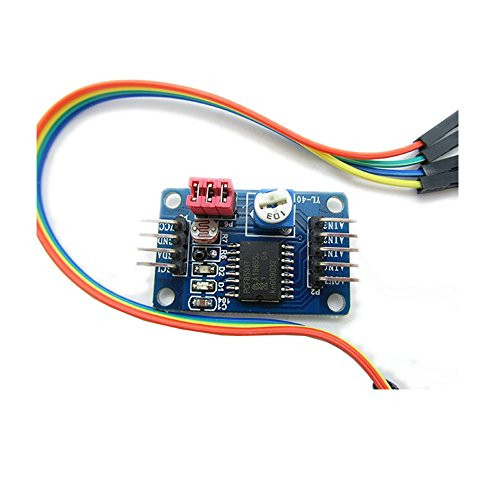

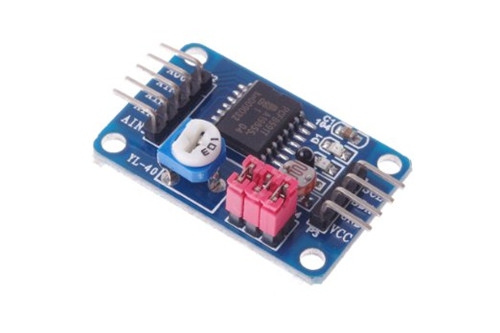

module nti siv PCF8951
Loj: 3.6cm * 2.3cm
Pins txhais:
Tus AINO nti analog tawm tswv yim.
AIN1 nti analog input interface
AIN2 nti analog input interface
AIN3 nti analog tawm tswv yim
Sab sab ntawm lub SCL IIC moos interface mus saib tau lub microcontroller IO chaw nres nkoj
SDA IIC cov interface txuas nrog microcontroller IO chaw nres nkoj
GND module rau ib qho sab nraud
VCC fais fab mov interface sab nraud 3.3v-5v
Module red jumper cov lus qhia rau kev siv
Module peb lub luv luv liab lub hau cap, feem, lub luag hauj lwm yog raws li nram no:
P4 txuas nrog lub P4 jumper, xaiv thermistor nkag mus rau Circuit Court
P5 txuas nrog P5 jumper los xaiv photoresistor access circuit
P6 txuas nrog lub P6 jumper, xaiv qhov 0-5V yuav tsum tau siv hluav taws xob qhov hluav taws xob
